How to Design an Outdoor Kitchen on a Deck
Designing an outdoor kitchen on a deck requires five steps: confirming structural capacity for the added weight, choosing a layout that fits your deck size, selecting fireproof materials for countertops and cabinets, planning utility connections for water, gas, and electricity, and adding shade, ventilation, and safety features.
A basic grill station costs $3,000 to $8,000 installed. A full outdoor kitchen with multiple appliances costs $20,000 to $40,000 or more. This guide covers each step with specific costs, dimensions, and safety requirements.
Table of Contents
Can Your Deck Support an Outdoor Kitchen?
Standard residential decks are designed for a total load of 50 pounds per square foot (PSF), split between 40 PSF live load (people, furniture, equipment) and 10 PSF dead load (the deck structure itself). To calculate your deck’s total capacity, multiply the area in square feet by 50. A 200 sq ft deck can support 10,000 lbs of total load.

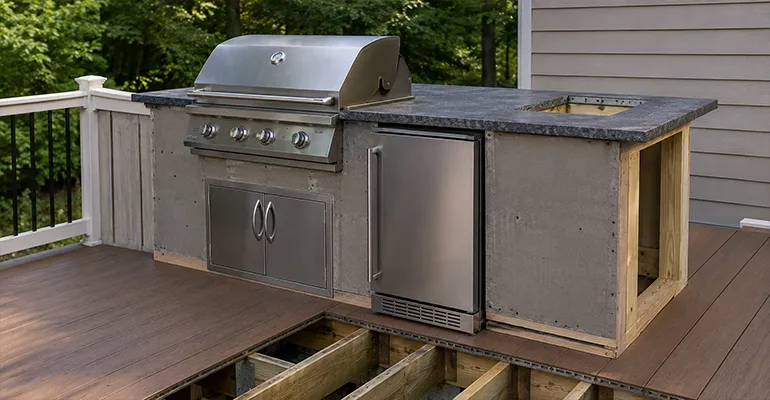

However, outdoor kitchens create concentrated point loads that differ from evenly distributed weight. A granite countertop weighs 20 to 25 lbs per sq ft. A built-in gas grill weighs 150 to 300 lbs. A full-size outdoor refrigerator weighs 200 to 350 lbs. These loads concentrate on small areas of the deck frame rather than spreading across the full surface.
Before installation, have a structural engineer or contractor verify that the joists beneath heavy components can handle the concentrated weight. Common reinforcements include:
- Doubling joists directly under the kitchen island
- Adding support beams under the countertop runs
- Upgrading post footings beneath the heaviest equipment
This assessment typically costs $200 to $500 and prevents structural failure after the kitchen is built.

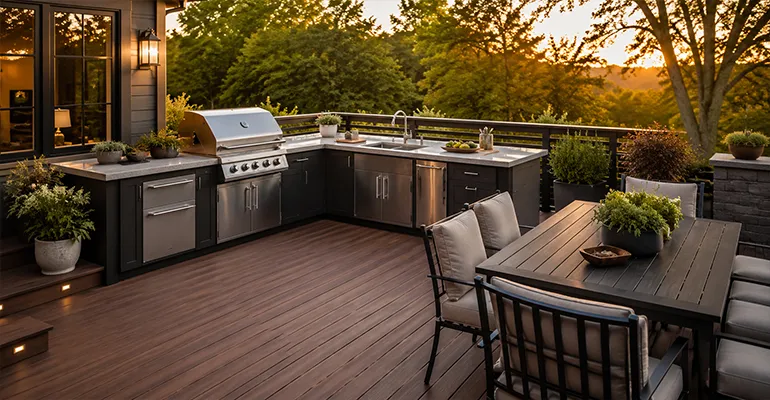

Choosing a Layout by Deck Size
The layout determines how efficiently you can cook, prep, and serve. Match your layout to your available space.
| Layout | Minimum Deck Area | Best For | Work Triangle |
| Linear (single wall) | 100 sq ft (10 x 10) | Small decks, simple grill stations | Not applicable (single line) |
| L shaped | 150 sq ft (10 x 15) | Mid size decks, grill + prep area + storage | 2 sides, 4 to 7 ft per side |
| U shaped | 200 sq ft (12 x 16+) | Large decks, full kitchen with multiple appliances | 3 sides, 4 to 9 ft per side |
| Island (freestanding) | 250 sq ft+ | Open format, social cooking with bar seating | Flexible |
The work triangle places the grill, sink, and refrigerator within easy reach. Each side of the triangle should measure 4 to 9 ft. Shorter distances create cramped working conditions. Longer distances waste steps during meal preparation.
Leave at least 36 inches of clear walkway behind the cooking zone for safe movement. Position the grill so the cook faces guests rather than turning away from the social area. For small deck designs, a linear layout along one railing maximizes usable floor space.

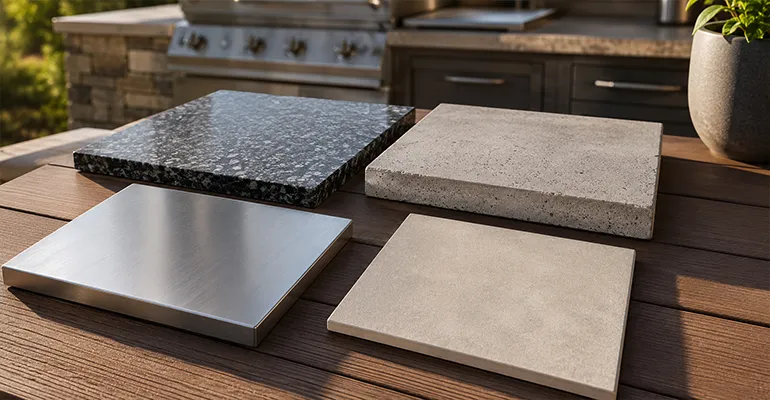

Materials: Countertops, Cabinets, and Decking
Every material in an outdoor deck kitchen must withstand heat, moisture, UV, and temperature swings. Fire safety is the top priority.
Countertop Materials
| Material | Cost per sq ft | Weight | Heat Resistant | Maintenance |
| Granite | $50 to $100 | Heavy (20 to 25 lbs/sq ft) | Yes | Seal annually |
| Poured concrete | $30 to $60 | Heavy (18 to 22 lbs/sq ft) | Yes | Seal every 1 to 2 years |
| Stainless steel | $50 to $80 | Light (3 to 5 lbs/sq ft) | Yes | Wipe clean, no sealing |
| Porcelain tile | $15 to $40 | Moderate | Yes | Regrout every 3 to 5 years |
Stainless steel is the lightest option and the best choice for decks where weight is a concern. Granite and concrete look more natural, but they add a significant load. Factor countertop weight into the structural assessment from step one.
Cabinets and Framing
Outdoor kitchen cabinets must be weatherproof and noncombustible near cooking zones. Stainless steel cabinets ($200 to $500 per linear ft) are the most durable and require no maintenance. Marine-grade polymer cabinets ($150 to $300 per linear ft) resist moisture and UV but should not sit directly adjacent to a grill without a heat shield.
Deck Surface
Place all heat-generating appliances on a noncombustible pad (concrete paver, stone slab, or cement board) rather than directly on composite decking board or wood. Maintain at least 12 to 24 inches of clearance between the grill and any combustible surface on all sides. Grease spills should be cleaned from composite decking promptly to prevent staining and slip hazards.

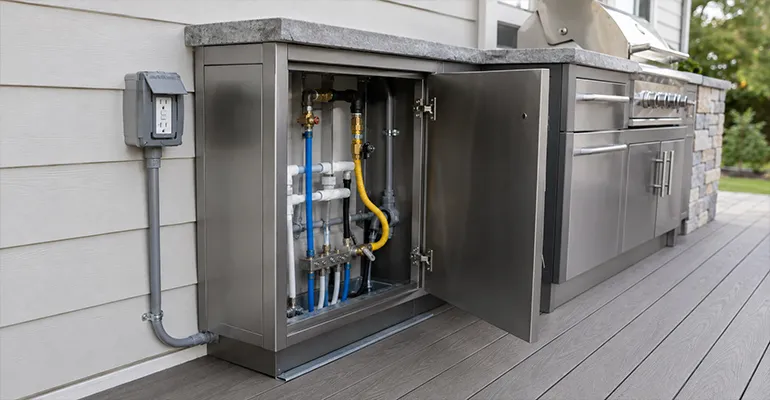

Planning Utilities: Water, Gas, and Electricity
An outdoor kitchen requires three utility connections. Placing the kitchen close to your house wall reduces utility run distances and installation costs.
Water
A sink requires both a supply line and a drain. Professional plumbing installation costs $500 to $2,000, depending on distance from the main supply. In freezing climates, install a shut-off valve indoors so you can drain the outdoor line before winter. Burial depth must be below the local frost line.
Gas
Built-in gas grills run on natural gas (piped) or propane (tank). Natural gas line installation costs $200 to $1,000, depending on distance. All gas work on elevated decks requires a licensed plumber or gas fitter and a permit in most jurisdictions. Never attempt DIY gas line installation. Propane tanks should be stored upright in a ventilated area, never inside an enclosed cabinet.
Electricity
Outdoor kitchens need at least one dedicated 20-amp GFCI-protected circuit for a refrigerator and a separate circuit for lighting and outlets. Electrical installation costs $500 to $1,500. All outdoor wiring must be rated for exterior use (UF cable or conduit). Hiring a licensed electrician ensures code compliance.
Permit costs for utility work typically range from $200 to $2,000 total, depending on project scope and jurisdiction.

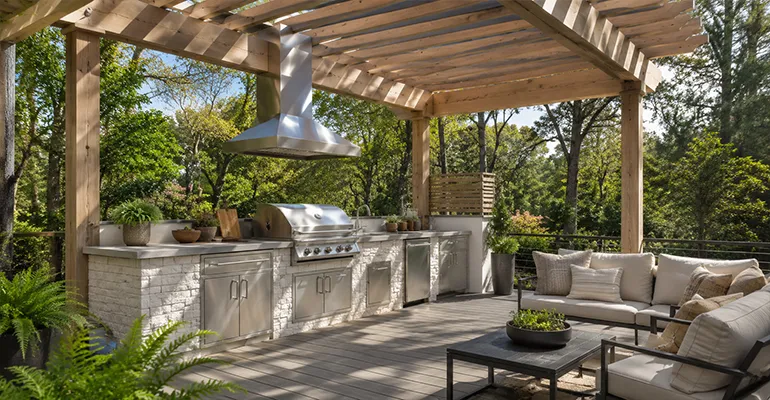

Shade, Ventilation, and Safety
Shade
A deck pergola or retractable canopy protects the cooking and dining area from sun and light rain. Solid roof structures provide full coverage but require ventilation planning for smoke. Budget $2,000 to $8,000 for a pergola sized to cover a standard outdoor kitchen footprint.
Ventilation
If your kitchen is under a roof or covered structure, ensure at least 3 ft of vertical clearance above the grill and 30 inches of open air on at least two sides. A stainless steel vent hood ($200 to $1,500) directs smoke and heat away from the ceiling and guests. Without proper ventilation, smoke and carbon monoxide can accumulate to dangerous levels under covered structures.
Fire Safety
Position the grill at least 10 ft from the house, garage, or any combustible wall per NFPA guidelines. Keep a fire extinguisher rated for grease fires (Class B or Class K) within 10 ft of the grill. Ensure all combustible materials (wood railings, pergola posts, fabric cushions) maintain manufacturer-specified clearances from heat sources.
For nighttime use, install task lighting above the cooking surface and ambient lighting in the dining zone. Solar or wired LED options both work. Position lights to illuminate the grill surface without creating glare for seated guests.
Cost Breakdown by Kitchen Complexity
| Kitchen Type | Typical Features | Installed Cost | Added Home Value (ROI) |
| Basic grill station | Built in grill, small prep counter, storage cabinet | $3,000 to $8,000 | 55% to 65% |
| Mid range kitchen | Grill, sink, refrigerator, L shaped counter, cabinets | $10,000 to $20,000 | 60% to 75% |
| Full custom kitchen | Multiple cooking appliances, U shaped counter, bar seating, vent hood, lighting | $20,000 to $40,000+ | 65% to 80% |
Use the EVODEK decking calculator to estimate deck material quantities if you are building or expanding a deck to support the kitchen. Order free samples to compare composite decking colors and textures for the surrounding deck surface.
Conclusion
Start with a structural assessment to confirm your deck can handle concentrated kitchen loads. Choose a layout that matches your deck size and cooking habits. Select noncombustible materials for surfaces near heat sources. Plan utilities close to the house to minimize installation costs. Add shade, ventilation, and fire safety features before the first cookout.
Outdoor kitchens return 55% to 80% of project cost in added home value. Spring and fall are the best seasons for construction because moderate temperatures allow concrete work to cure properly and make outdoor labor comfortable.
FAQ
How much does an outdoor kitchen on a deck cost?
A basic grill station costs $3,000 to $8,000 installed. A mid-range kitchen with sink, refrigerator, and L-shaped counter costs $10,000 to $20,000. A full custom kitchen with multiple appliances, bar seating, and lighting costs $20,000 to $40,000 or more. Permit fees add $200 to $2,000.
Can you put a grill on a composite deck?
Yes, but never place a grill directly on the composite surface. Use a noncombustible pad (concrete paver, stone slab, or cement board) under the grill with at least 12 to 24 inches of clearance to combustible surfaces on all sides. Composite material can warp or melt under sustained high heat. Check the grill manufacturer’s clearance specifications.
Do you need a permit for an outdoor kitchen on a deck?
Most jurisdictions require permits for gas line installation, plumbing, and electrical work. Building permits are also needed if you are modifying the deck structure to support additional weight. Permit costs typically total $200 to $2,000. Contact your local building department before starting.
What is the best countertop for an outdoor deck kitchen?
Stainless steel is the lightest (3 to 5 lbs per sq ft) and requires no sealing, making it ideal for weight-sensitive decks. Granite ($50 to $100 per sq ft) and concrete ($30 to $60 per sq ft) look more natural but weigh 18 to 25 lbs per sq ft and need annual sealing. Porcelain tile ($15 to $40 per sq ft) is the most budget-friendly but requires periodic regrouting.
Does an outdoor kitchen increase home value?
Yes. Outdoor kitchens typically return 55% to 80% of project cost in added home value. Mid-range kitchens ($10,000 to $20,000) generally produce the highest percentage return. The kitchen must be well-maintained and functional at the time of sale to realize the full value increase.
How do you winterize an outdoor kitchen on a deck?
Shut off the indoor water valve and drain all outdoor supply and drain lines before the first freeze. Disconnect and store propane tanks in a ventilated area away from heat sources. Cover all appliances with fitted weatherproof covers. Clean the grill and remove grease stains from the deck surface before covering for the season.
