How to Install Composite Decking on a Slope: A Comprehensive Guide
In some environments, houses have natural undulations and slopes. Installing composite decking in a flat environment is very simple, but how do you install it on a slope? Building a deck on a slope requires special steps and planning to ensure a stable, aesthetically pleasing result.
Installing composite decking on a sloping slope can add more value and beauty to your outdoor space. While it requires extra careful planning and implementation, it’s not as difficult as you might think. In this article, we’ll cover how to install composite decking boards on a slope and what to expect during the installation.
Table of Contents
Key Considerations Before Starting
To best install a deck on a slope, you need to consider a few factors to ensure proper planning and installation.
More Durable & Waterproof Composite Decking CPD-05
EVODEK unique two-tone art color technology gives you a stunning natural wood look so you can enjoy the great outdoors.
Avoid Direct Installation on Uneven Ground
Never install composite decking directly on sloped or uneven ground. This can lead to instability and premature wear. Instead, use adjustable pedestals, posts, or a framed substructure to create a level platform. It supports adjustments so it can accommodate different heights and slopes. For example, in hilly areas like Los Angeles, pedestals can adjust up to 24 inches, accommodating gradients of up to 15%.
Slope Gradient and Cost Implications
Steeper slopes (over 10%) require more materials, such as additional posts or concrete footings, which can increase costs by 20-50%. For instance, a 200 sq ft deck on a mild slope might cost $5,000-$8,000 in materials and labor.
Choose concrete footings for long-lasting strength. They stop soil erosion and cut down on long-term maintenance by stopping changes caused by freeze-thaw cycles. But they aren’t as important in mild areas like California.
Proximity to the House and Primary Use
Try to install the deck as close to the house as possible, which will allow it to be fully utilized. A deck that is far away from the house will make it inconvenient for you to use and greatly reduce the usage of your outdoor deck. Generally, composite decking is used as an extension of the outdoor space and is utilized. In urban settings, features like built-in benches can enhance multi-level designs that follow the slope.
Before installing a composite deck, you need to determine the purpose of the deck based on your needs. If you want to use the deck for an outdoor dining area, then consider building an outdoor kitchen on the deck. If you want to enjoy peaceful outdoor living on the deck, then consider building the deck in an area away from the hustle and bustle.
Privacy and Safety
Whether it’s an indoor room or an outdoor space, homeowners want more privacy in their environment. Generally, outdoor decks are installed at the back of the building where there is more privacy. However, you need to evaluate the privacy area of your outdoor space depending on the design style and the building. If you find that you can’t find an area outdoors that offers enough privacy, then consider installing a fence around the deck.
For safety reasons, guardrails should be installed if the height difference on either side of the deck exceeds 30 inches. Hire a certified professional to ensure railings meet code requirements.
Ventilation and Waterproofing
Proper ventilation is important to maintain the performance and longevity of your deck. When installing the deck, ensure a minimum clearance of 1.5 to 2 inches beneath the deck. This helps to maintain good ventilation. Proper ventilation helps reduce moisture buildup. It can effectively reduce the possibility of mold and rot.
You can also install ventilation products on your deck to provide additional ventilation and ensure the longevity of your deck. In addition, use joist tape or flashing on the substructure for added protection.
When to Hire a Professional
Installing composite decks on a slope is not a very simple task. For slopes over 5%, hiring professionals ensures compliance and longevity. Costs range from $30-$60 per sq ft, but professionals handle permits and warranties. This must ensure the deck is installed correctly, thereby guaranteeing its service life and performance.
Tools and Materials Checklist
Here’s a comprehensive list to help you get started:
| Category | Items | Estimated Cost (200 sq ft deck) |
|---|---|---|
| Tools | Level, tape measure, circular saw, drill, post hole digger, string line, safety gear (gloves, glasses) | $100-$300 (rental options available) |
| Materials | Composite deck boards (e.g., Trex or EVODEK), joists (pressure-treated lumber or steel), concrete footings, adjustable pedestals, hidden fasteners, waterproof membrane, railings | $3,000-$5,000 |
| Optional | Joist tape, ventilation grates, LED lighting | $200-$500 |
Source: Based on averages from major suppliers; check current prices in your area.
Step-by-Step Installation Guide
Follow these steps for a secure installation. Adjust for steeper slopes as needed.
Planning and Preparation
Proper planning and preparation are essential before you begin installation. Measure the slope using a level and stake out the area. Calculate the gradient (rise over run) to determine footing depths, dig 24-48 inches deep to reach below the frost line (if applicable).
Plan for drainage by sloping the deck 1/8 inch per foot away from the house. Although composite materials have excellent waterproofing properties. However, prolonged exposure to moisture and standing water may still cause damage to the deck.
In addition to preparing for the deck installation, you need to determine the local building codes and specifications. Ensure that the installation on a slope meets the requirements.
Site Cleanup and Leveling
Completely clear the site of debris, vegetation, and obstacles. Ensure that it will not interfere with the installation of composite decks and prepare the site well before deck installation. If necessary, use a concrete base or excavate the ground to create a level mounting surface. Ensuring that the mounting surface is level and sturdy is important for the proper installation of the deck.

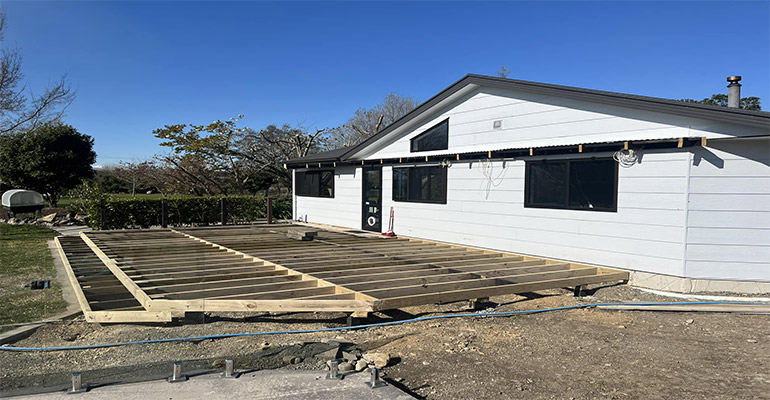

Installing the Substructure
After the planning and cleanup are complete, you are ready to install the subframe. Build a sturdy frame with joists spaced 12-16 inches on center (12 inches for diagonal installs). Secure posts in concrete footings, ensuring they are plumb. Add blocking every 4-6 feet for stability. For multi-level decks, tier the frame to match the terrain.
Adding Waterproofing
Waterproofing is especially important when installing decking on slopes. Apply joist flashing tape to all top surfaces and a waterproof membrane under the deck. Waterproofing minimizes mold, warp, and rot caused by moisture and humidity, and plays an important role in extending the life of your deck.
Decking Orientation and Installation
The direction in which the deck is installed directly affects the aesthetics and functionality of your outdoor deck, so this is a key factor to consider. Install boards perpendicular to the joists and slope for optimal drainage.
To ensure proper installation, you’ll need to start installing composite decks from the highest point of the slope. Place the first piece of decking flush with the lower frame. And use conventional screws or hidden fasteners to secure the deck.
Repeat this step until you have finished installing the deck. Make sure to leave 1/8-1/4 inch gaps between boards (adjust for temperature: wider in cold weather) to prevent water buildup and swelling. To keep the deck surface level and consistent, use a level to measure during the installation process.
Detail Correction
Because of the slope gradient, detail correction will be required after the installation is complete. Use a circular saw to cut the deck to your needs, making sure it conforms to the ground contours. Note that the cut deck needs to be flush with the underframe and have smooth edges.
Finishing and Maintenance
After completing the installation of the decking, the whole thing needs to be inspected and adjusted if there are any problems. Ensure that all decking is securely fastened and that there is no warping of the deck. Once the inspection is complete, clean the deck, use warm soapy water and a deck brush to clean the deck. You will likewise need to clean it regularly afterward to maintain its appearance and performance.
Learn More: What Kind of Maintenance Does a Composite Deck Need?
Conclusion
To summarize, installing composite decks on slopes is possible. However, you need to carefully read the precautions before installation to ensure that the deck will fit properly. Careful planning, making sure the lower framing is properly installed, and paying attention to the details of the installation. These steps will allow you to create a stable and beautiful outdoor deck.
Remember to clean and inspect the deck regularly after the installation is complete to maintain the performance and longevity of the deck as long as possible.
FAQs
Do I need to slope the deck surface itself on a sloped yard?
No, the deck surface should be level for safety and comfort. But it should also have a modest slope of 1/8 to 1/4 inch per foot away from the house (or building) to make sure that water drains properly. This stops water from gathering, which can cause mold, slick surfaces, or debris to build up.
What’s the maximum slope I can build a deck on without major issues?
There isn’t a clear maximum that applies to everyone. But slopes that are steeper than 45 degrees (or very steep declines) frequently need professional engineering to make sure they stay stable. This can mean deeper footings or multi-level or terraced designs to keep the ground from settling or eroding. For slopes that aren’t too steep (15–20%), movable pedestals or concrete piers work nicely.
Can I install composite decking directly on the ground or slope without a raised substructure?
No, you should never put composite decking straight on the ground or on sloped terrain. To keep moisture from becoming trapped, mold from growing, and decay from happening, manufacturers say that the ground should be at least 6 to 12 inches above the ground (more on slopes). To make a level, raised frame, use posts, piers, or adjustable pedestals. Direct contact might void warranties and cause things break down too soon.
